How To Repair Rack And Pinion Leak On A Toyota 1998 4runner

98.tacoma [OP] Member

Joined:

Nov 6, 2016

Member:

#201694

Messages:

11

Ga

Vehicle:

98 tacoma preruner

just a 98 Tacoma with some new parts. 2wd, 160k miles

My 98 has a leak on rack and pinion and its pritty bad. but i cant find a vidio to fix the seals on it. i think if i replace the seals then ill be good hopefully. A new rack and pinion is way too expensive. anyone know about these or could help??
043RZ Well-Known Member

Joined:

Mar 20, 2011

Member:

#53381

Messages:

402

Gender:

Male

First Name:

Matt

Spring Grove, PA

Vehicle:

2004 Tacoma SR5

6" Fabtech Lift, OME Dakar leaf springs, BudBuilt Traction Bar, 15" American Racing Wheels, 5.29 Nitro Gears, 35" BFGs AT, Pioneer 200 Watt Stereo, 6x8 Pioneer speakers, Raised Front and Rear Diff Breathers, Deck Plate Mod, Red Interior Underglow, Red Exterior Underglow, Cool White LED Rock Lights,

Is that coming out of the boot? If so your probably going to have to buy a new rack and send in the core. You could rebuild it but it will prolly be worth just getting a new one with a warranty
Dirty Pool I WAS DRIVING THAT MODEL A

Joined:

Mar 24, 2013

Member:

#100471

Messages:

2,161

Gender:

Male

59.4 Miles, 56.67° NE Of Moab

Vehicle:

99 XCAB V6 MT TRD

Dirty Pool rear bumper/air tank with integrated spare CV shaft storage, DP customized TJM front bumper, 8000 lb Ramsey/Technora rope, E-locked, Extended breathers with front diff catch can, PCV catch can, SAWs with DP heim joint seals, DP custom 6 leaf rear springs/Billies, DP custom skids, 2lo, Gray wire, Cap, Bed Rug, Black steelies, 01 Center console, Map lights, Disraeli gears

Check for rust on the rack shaft inside the boots first.
Then this link might help but it's not for everyone. Remember if your 98 rack is original it has the "old style" guide and should be upgraded to the new style along with the seal kit. Also replacing "rack end seals" can be done without fooling with the more involved control valve/pinion shaft.
Light a fire and get comfortable.
https://www.tacomaworld.com/threads/rack-pinion-service-tools-tips.312600/#post-8072827

Last edited: Jan 30, 2017
bry838 Well-Known Member

Joined:

Sep 3, 2014

Member:

#137527

Messages:

2,403

Gender:

Male

oregon

Vehicle:

'00 tacoma 2.7 4x4 reg cab 5speed x's 2. '01 T4R 3.4 5 speed

Honestly you'll be better off replacing that bad boy. After fooling around with seals even if you can find em or have it done you'll already be into it fairly good $$ wise. Then you still have an aged unit. Look around there are lots of options for new and remaned racks from super cheap all the way to toyota oem.
98.tacoma [OP] Member

Joined:

Nov 6, 2016

Member:

#201694

Messages:

11

Ga

Vehicle:

98 tacoma preruner

just a 98 Tacoma with some new parts. 2wd, 160k miles

Id love to do oem but i dont have the money. and it is comming out of the seals. the boot looks fine just oil on outside. i might try the seals first because they are a whole lot cheeper. i just need something to get thew for a cupple yeirs. also r there any springs or anything that if i take that bolt off the back (right where there is red fluid) to replace the seal that is busted, will it mess it up where i would have to replace whole unit? this is out of my feild of knowledge.
cruiserguy Well-Known Member

Joined:

Jul 31, 2016

Member:

#193416

Messages:

19,069

Gender:

Male

First Name:

Elijah

SLC

Vehicle:

2000 ext cab, 2.7L, auto, 4x4

I've never rebuilt or replaced seals in a steering rack, so don't know your answer. But I bet this guy does @Dirty Pool
DrZ Well-Known Member

Joined:

Dec 14, 2014

Member:

#144262

Messages:

1,458

Gender:

Male

Mesa, AZ

Vehicle:

96 2.4L 5-speed

First of all, are you sure it's not leaking from a hose above and just dripping down onto the rack?
If it is the rack leaking, then you have a few options other than a new/rebuilt unit. You could find a used one (that's not leaking) for cheap at a junkyard. If you look up the part number, you may find that some other models used the same rack & pinion, such as 4Runners. If you're lucky you could find a junkyard vehicle with the engine removed to make it a little easier.

Second, there are rack & pinion seal kits available either from Toyota or Gates (~$50) or cheaper brands. The problem with this is the procedure for disassembling and reassembling involves pressing some bearings and seals in and very carefully installing teflon rings. I've never done it, but you can read through the procedure in the factory repair manual. This would be the cheapest route if your time is worth nothing.

If you want a relatively cheap rebuilt unit you could try Detroit Axle for $225. That pages shows what other vehicles are compatible which might help if you want to look at a junkyard for a rack.
98.tacoma [OP] Member

Joined:

Nov 6, 2016

Member:

#201694

Messages:

11

Ga

Vehicle:

98 tacoma preruner

just a 98 Tacoma with some new parts. 2wd, 160k miles

Oh wow... yahhh i know id mess that up. Nore do i have the tools. well i just ordered a new rack and it was around 300. but thank you verry much. and thank all yall. ill tell yall how it goes when i put new one in this weekend
99SuperTaco4x4 Well-Known Member

Joined:

Apr 26, 2016

Member:

#185380

Messages:

953

Gender:

Male

First Name:

Adam

Sacramento

Vehicle:

1999 3.4L V6 Tacoma, 4x4, TRD Supercharger

YMMV, but Lucas PS Stop Leak worked for me. It is a temporary fix, but I was refilling my reservoir weekly, with a stain on my driveway from a constant drip. After putting Lucas in, I haven't put in any PS fluid for 1.5 months. Again, it may not work for you and this is not a permanent solution, but so far its saving me from the time, hassle and cost of a new rack.
98.tacoma [OP] Member

Joined:

Nov 6, 2016

Member:

#201694

Messages:

11

Ga

Vehicle:

98 tacoma preruner

just a 98 Tacoma with some new parts. 2wd, 160k miles

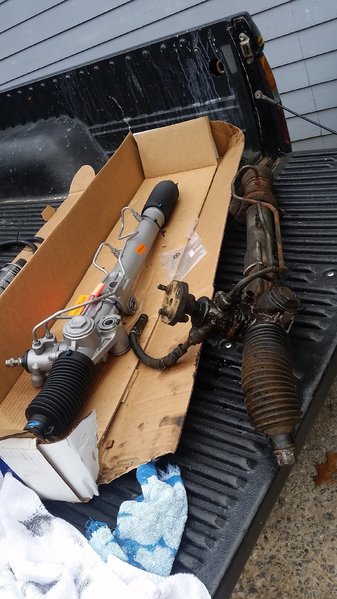

I got the new one in and all new lines and it works like a charm. Not one leak at all. thanks yall!
Check if that came with a warranty. Had mine replaced and couple months later had to use the warranty to replace it yet again. Just food for thought.
98.tacoma [OP] Member

Joined:

Nov 6, 2016

Member:

#201694

Messages:

11

Ga

Vehicle:

98 tacoma preruner

just a 98 Tacoma with some new parts. 2wd, 160k miles

it does, i made sure of that at least lol. but thanks!
